Welcome to PSTOS

Paramount Theatre - Wurlitzer Publix 1 (initially 4/20, currently 4/21)
Seattle, Washington

Back to the Paramount Theatre main page

Chamber Layout:

Pipework is arranged in three chambers: Main, String & Solo. The Main chamber is above the String chamber on the left side. The marimba, sleigh bells and some un-tuned percussions are in an unenclosed area beneath the String chamber. The Solo chamber is on the right. The piano, master xylophone and metal harp are in an unenclosed area above the Solo chamber.

Left side

Main chamber
Tuba Horn
Diaphonic Diapason
Tibia Clausa
Clarinet
Flute/Bourdon

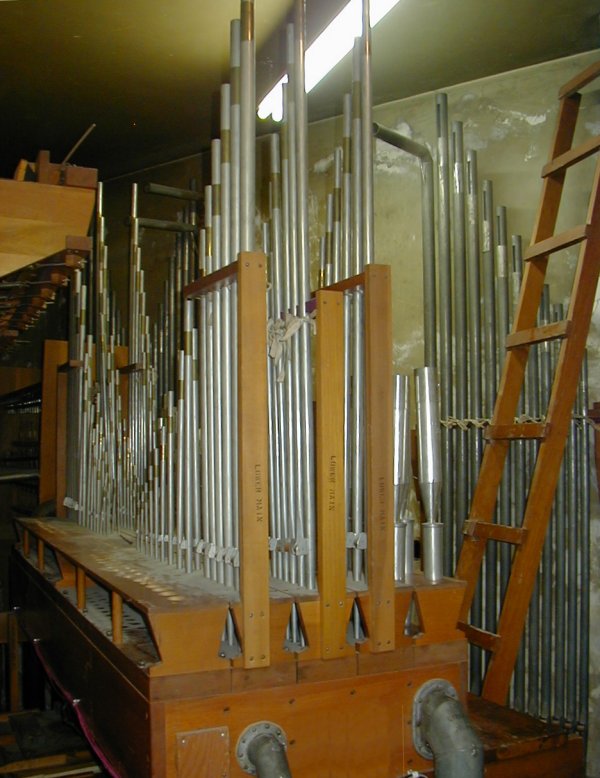

String chamber
Solo String
Viol D'Orchestra
Viol Celeste
Vox Humana
Dulciana

Chrysoglott

unenclosed
Sleigh Bells
Marimba
Xylophone

Snare Drum
Crash Cymbal
Bass Drum
Right side

relay room

unenclosed
Piano
Metal Harp
Master Xylophone

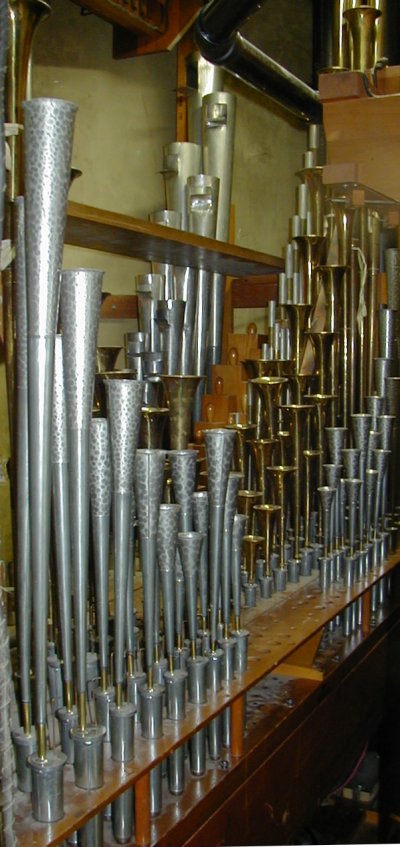

Solo chamber
Tuba Mirabilis
English Horn
Brass Trumpet
Tibia Clausa
Orchestral Oboe
Kinura
Brass Saxophone
Solo String
Oboe Horn
Quintadena
Vox Humana

Glockenspiel
Cathedral Chimes
Toy Counter


Current Stoplist:

During the recent console refurbishment, the stoplist was respecified to reflect a more modern approach. Additional Tibia mutations have been added to the Great manual and 16' stops have been removed from the Accompaniment. The new arrangement preserves the tonal palette of the original Publix 1 specification, but adds more flexibility for today's performers.

See the Original Publix 1 information and stop list

Pedal
32 Tibia (Res)
16 Tuba Profunda
16 Diaphone
16 Tibia Clausa (S)
16 Bourdon
8 Tuba Mirabilis
8 English Horn
8 Tuba Horn
8 Octave
8 Tibia Clausa
8 Tibia Clausa (S)
8 Clarinet
8 Cello
8 Flute
16 Piano
Accomp to Pedal
Great to Pedal
Solo to Pedal

Pedal traps
Bass Drum
Kettle Drum
Snare Drum
Crash Cymbal
Cymbals


Bombarde
16 Tuba Mirabilis (TC)
16 English Horn (TC)
16 Tuba Profunda
16 Diaphone
16 Tibia Clausa (TC)
16 Tibia Clausa (S)
8 Tuba Mirabilis
8 English Horn
8 Trumpet
8 Tuba Horn
8 Diaphonic Diapason
8 Tibia Clausa
8 Tibia Clausa (S)
8 Solo String
8 Viol D'Orchestra
8 Viol Celeste
4 Clarion Mirabilis
4 Clarion
4 Piccolo
4 Piccolo (S)
Master Xylophone
Glockenspiel
2 Piccolo (S)
Great Sub Octave
Great Octave
Solo Sub Octave

Second Touch
16 Tuba Profunda
8 Tuba Horn
8 Tibia Clausa


Solo
8 Tuba Mirabilis
8 English Horn
8 Trumpet
8 Tuba Horn
8 Diaphonic Diapason
8 Tibia Clausa
8 Tibia Clausa (S)
8 Orchestral Oboe
8 Kinura
8 Clarinet
8 Saxophone
8 Solo String
8 Oboe Horn
8 Quintadena
8 Vox Humana
8 Vox Humana (S)
4 Piccolo
4 Piccolo (S)
2-2/3 Twelfth
2 Piccolo
Piano
Metal Harp
Marimba
Xylophone (both Xylos)
Glockenspiel
Sleigh Bells
Chrysoglott
Cathedral Chimes
Accompaniment
8 Tuba Mirabilis
8 English Horn
8 Trumpet
8 Tuba Horn
8 Diaphonic Diapason
8 Tibia Clausa
8 Tibia Clausa (S)
8 Clarinet
8 Saxophone
8 Solo String
8 Viol D'Orchestra
8 Viol Celeste
8 Quintadena
8 Concert Flute
8 Vox Humana
8 Vox Humana (S)
4 Piccolo
4 Piccolo (S)
4 Viol
4 Octave Celeste
4 Flute
4 Vox Humana
4 Vox Humana (S)
2-2/3 Tibia (M)
2 Piccolo (M)
Piano
Metal Harp
Marimba
Harp
Chrysoglott
Snare Drum
Tambourine
Castanets
Chinese Block
Tom Tom
Cymbal
Accomp Octave
Solo to Accomp

Second Touch
8 English Horn
8 Tuba Mirabilis
8 Tuba Horn
8 Tibia Clausa
8 Diaphonic Diapason
8 Tibia Clausa (S)
8 Saxophone
4 Piccolos
Cathedral Chimes
Xylophone
Glockenspiel
Triangle
Solo to Accomp
Solo to Accomp Pizz


Tremulants
Main
String
Diapason/Tuba
Tibia Main
Vox Humanas
Solo
Tuba Mirabilis
Tibia Solo
English Horn


Swell Shoes
Main
String
Solo
Master
Crescendo
Great
16 English Horn (TC)
16 Tuba Profunda
16 Diaphone
16 Tibia Clausa (TC)
16 Tibia Clausa (S)
16 Clarinet (TC)
16 Saxophone (TC)
16 Vox Humana (TC)
16 Vox Humana (TC) (S)
8 Tuba Mirabilis
8 English Horn
8 Trumpet
8 Tuba Horn
8 Diaphonic Diapason
8 Tibia Clausa
8 Tibia Clausa (S)
8 Orchestral Oboe
8 Kinura
8 Clarinet
8 Saxophone
8 Solo String
8 Viol D'Orchestra
8 Viol Celeste
8 Concert Flute
8 Vox Humana
8 Vox Humana (S)
5-1/3 Tibia (S)
4 Piccolo
4 Piccolo (S)
4 Viol
4 Octave Celeste
4 Flute
4 Vox Humana
4 Vox Humana (S)
3-1/5 Tibia (S)
2-2/3 Tibia
2 Piccolo
2 Fifteenth (VDO)
1-3/5 Tibia
1 Tibia
Piano
Marimba
Harp
Bells
Master Xylophone
Xylophone
Glockenspiel
Chrysoglott
Cathedral Chimes
Great Sub Octave
Great Octave
Solo Sub Octave

Second Touch
16 Tuba Profunda
Solo to Great
Solo to Great Pizz

Tibia Mutations Main
Tibia Mutations Solo

10HP Orgoblo blower; 10" pressure except 6" for the Vox Humanas and 15" for the Tibias, Tubas, Post Horn and Diapason (wooden Diaphonic bass).
